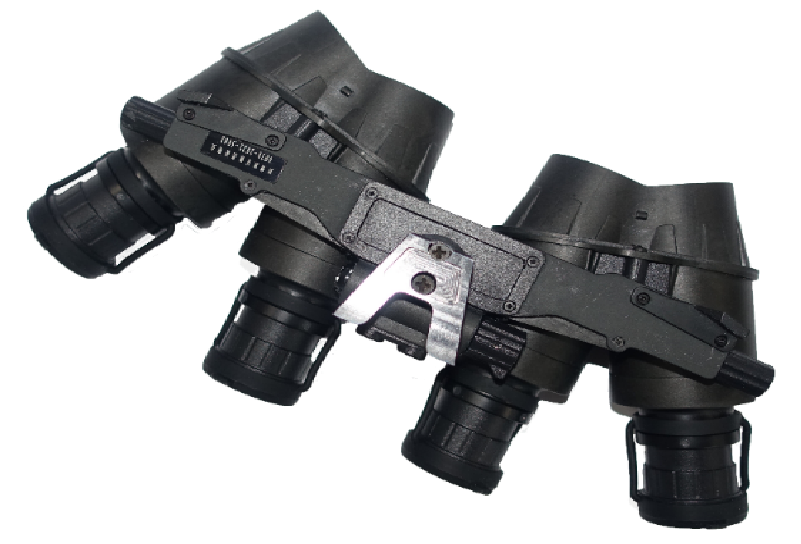

Binocular Low-Light-Level Night Vision Goggles with Four Tubes

1. Weight of the main unit: ≤ 900g (excluding the battery box);

2. Optical magnification: 1×;

3. Using a low-light-level image intensifier of the super second generation or above (including the super second generation);

4. Field of view angle: ≥ 90° (Horizontal field of view: ≥ 90°, Vertical field of view: ≥ 40°);

5. Continuous working time: ≥ 8h;

6. Recognition distance: The recognition distance for an upright and moving pedestrian is ≥ 100m (under the condition that the illuminance is not greater than 1×10⁻³ lx);

7. Exit pupil distance: ≥ 25mm;

8. Interpupillary distance adjustment range: 52～72mm;

9. It has the function of battery reverse connection protection

The binocular low-light-level night vision goggles with four tubes have a relatively wide field of view, making it easy to detect the surrounding situations. They can be used in scenarios such as nighttime vehicle driving, maintenance, and operation; nighttime work, nighttime reconnaissance, counter-terrorism operations, etc. They are mainly used by vehicle drivers, reconnaissance teams, etc. when they are performing special tasks, which can increase the nighttime perception range of team members

Wide-field-of-view optical design technology;
The design of the helmet bracket taking human-machine ergonomics into account meets the usage requirements of different people and different head shapes;
The interpupillary distance is adjustable to meet the usage needs of different people with different interpupillary distances

Weight of the main unit: ≤ 900g (excluding the battery box);
Optical magnification: 1×;
Using a low-light-level image intensifier of the super second generation or above (including the super second generation);
Field of view angle: ≥ 90° (Horizontal field of view: ≥ 90°, Vertical field of view: ≥ 40°);
Continuous working time: ≥ 8h;
Recognition distance: The recognition distance for an upright and moving pedestrian is ≥ 100m (under the condition that the illuminance is not greater than 1×10⁻³ lx);
Exit pupil distance: ≥ 25mm;
Interpupillary distance adjustment range: 52～72mm;
It has the function of battery reverse connection protection

1.** Installation and Calibration**: The holographic sight should be correctly mounted on the firearm, and necessary calibration should be carried out to ensure aiming accuracy.

2.**Battery Management**: Regularly check and replace the batteries to avoid affecting the normal use of the sight due to insufficient gun sight power.

3.**Maintenance**: Keep the sight clean and dry, and avoid it from being affected by adverse factors such as impacts or vibrations.

4.**Operation Specifications**: When using the holographic sight, the operation specifications should be followed to ensure the safety of the shooter and the aiming accuracy.
