Night Vision Goggles with Optical Waveguide Technology
1.Weight: ≤ 320g;
2.Dimensions: 200mm × 95mm × 85mm;
3.Operating distance: Visibility ≥ 10km, illuminance ≥ 10⁻³ lx, with an opaque background: The recognition distance for an upright person (1.7m × 0.5m) ≥ 50m;
4.Focus adjustment range: 250mm ～ ∞;
5.Field of view angle: ≥ 40° (diagonal);
6.Visual magnification: 1× ± 5%°;
7.Image display mode: OLED binocular display;
8.Continuous working time: ≥ 6h (at room temperature)

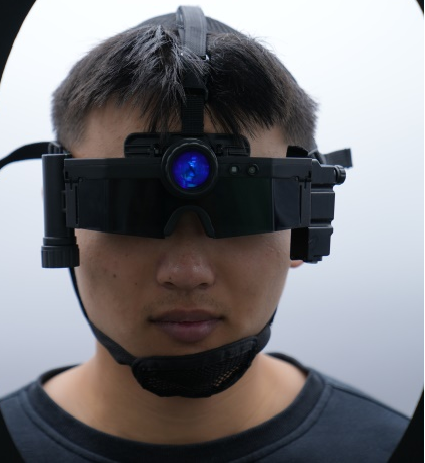

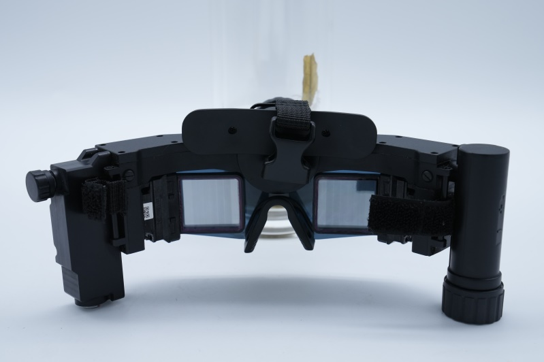

The night vision goggles with optical waveguide technology combine optical waveguide with low-light-level solid imaging devices, making the existing night vision goggles more flattened. They achieve the wearability of night vision products, ensuring comfortable and stable wearing, quick installation and removal, and convenient operation. These goggles are used for activities such as walking on foot at night, close-range observation, operation and maintenance of equipment, reading, and so on.
1.Weight: ≤ 320g;
2.Dimensions: 200mm × 95mm × 85mm;
3.Operating distance: Visibility ≥ 10km, illuminance ≥ 10⁻³ lx, with an opaque background: The recognition distance for an upright person (1.7m × 0.5m) ≥ 50m;
4.Focus adjustment range: 250mm ～ ∞;
5.Field of view angle: ≥ 40° (diagonal);
6.Visual magnification: 1× ± 5%°;
7.Image display mode: OLED binocular display;
8.Continuous working time: ≥ 6h (at room temperature)
1.Weight: ≤ 320g;
2.Dimensions: 200mm × 95mm × 85mm;
3.Operating distance: Visibility ≥ 10km, illuminance ≥ 10⁻³ lx, with an opaque background: The recognition distance for an upright person (1.7m × 0.5m) ≥ 50m;
4.Focus adjustment range: 250mm ～ ∞;
5.Field of view angle: ≥ 40° (diagonal);
6.Visual magnification: 1× ± 5%°;
7.Image display mode: OLED binocular display;
8.Continuous working time: ≥ 6h (at room temperature)
1.** Installation and Calibration**: The holographic sight should be correctly mounted on the firearm, and necessary calibration should be carried out to ensure aiming accuracy.
2.**Battery Management**: Regularly check and replace the batteries to avoid affecting the normal use of the sight due to insufficient gun sight power.
3.**Maintenance**: Keep the sight clean and dry, and avoid it from being affected by adverse factors such as impacts or vibrations.
4.**Operation Specifications**: When using the holographic sight, the operation specifications should be followed to ensure the safety of the shooter and the aiming accuracy.
